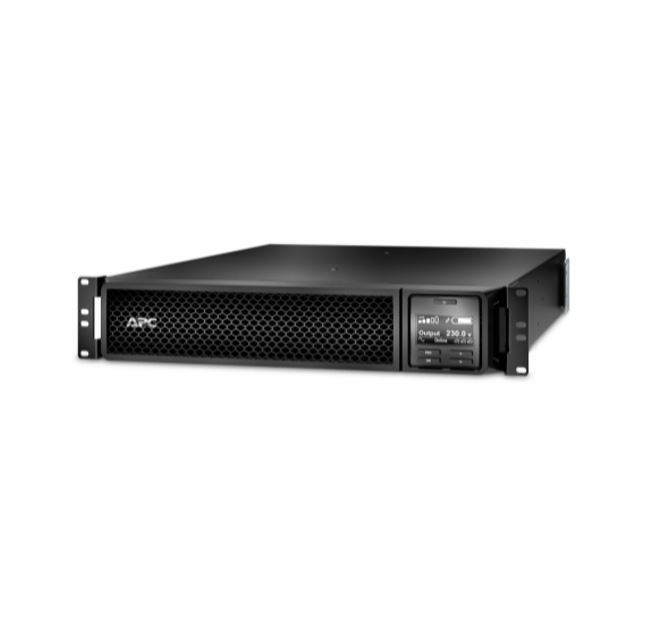

APC Smart-UPS 3000VA LCD 2U Rackmount 2700W

Description

Output
• Output power capacity: 2.7 KWatts / 3.0 kVA
• Max Configurable Power (Watts): 2.7 KWatts / 3.0 kVA
• Nominal Output Voltage: 230V
• Output Voltage Note: Configurable for 220: 230 or 240 nominal output voltage
• Output Voltage Distortion: Less than 2%
• Output Frequency (sync to mains): 50/60Hz +/- 3 Hz
• Other Output Voltages: 220, 240
• Load Crest Factor: 3: 1
• Topology: Double Conversion Online
• Waveform type: Sine wave
• Output Connections: ◦ (8) IEC 320 C13 (Battery Backup)
â—¦ (2) IEC 320 C19 (Battery Backup)

• Bypass: Internal Bypass (Automatic and Manual)

Input
• Nominal Input Voltage: 230V
• Input frequency: 40 – 70 Hz (auto sensing)
• Input Connections: British BS1363A, IEC-320 C20, Schuko CEE 7/EU1-16P
• Cord Length: 2.44 meters
• Input voltage range for main operations: 160 – 275 V
• Input voltage adjustable range for mains operation: 100 – 275 (half load) V
• NuMBer of Power Cords: 1
• Other Input Voltages: 220, 240

Batteries & Runtime
• Battery type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof
• Included Battery Modules: 1
• Typical recharge time: 3 hour(s)
• Nominal Battery Voltage: 96V
• Replacement Battery: APCRBC152
• RBC Quantity: 1
• Extendable Run Time: 1
• Battery Volt-Amp-Hour Capacity: 505
• Extended Run Options: APC-Smart-UPS-SRT-3000VA-RM-230V
• Runtime ◦ View Runtime Graph
â—¦ View Runtime Chart

• EfficiencyView: Efficiency Graph

Communications & Management
• Interface Port(s): RJ-45 Serial, Smart-Slot, USB
• Control panel: Multi-function LCD status and control console
• Audible Alarm: Audible and visible alarms prioritized by severity
• Emergency Power Off (EPO): Yes
• Available SmartSlot™ Interface Quantity: 1

Surge Protection and Filtering
• Surge energy rating: 340 Joules
• Filtering: —

Physical
• Maximum Height: 85 mm, 8.5 cm
• Maximum Width: 432 mm, 43.2 cm
• Maximum Depth: 635 mm, 63.5 cm
• Rack Height: 2 U
• Net Weight: 31.3 k
