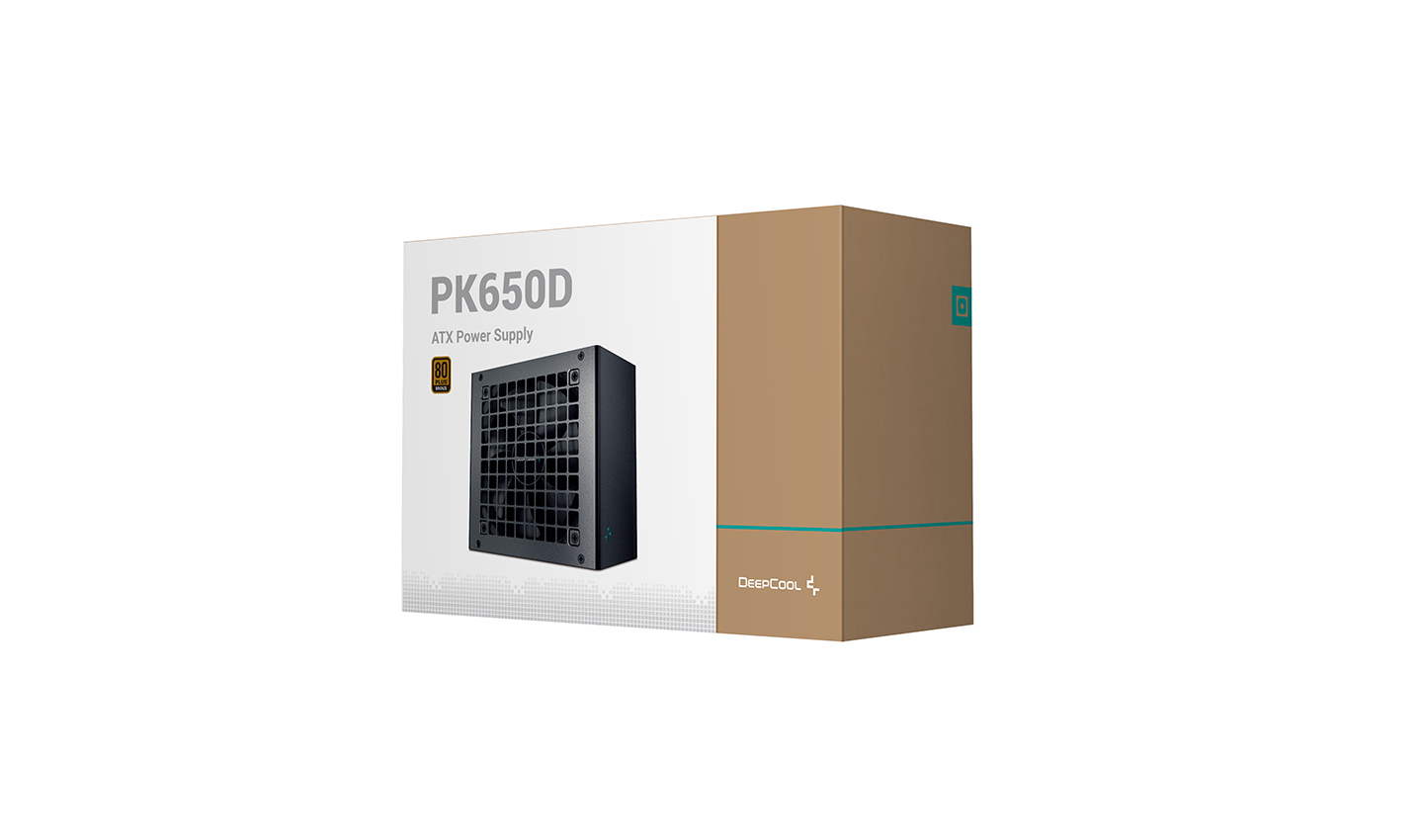

DeepCool PK650D 80+ Bronze Power Supply Unit, 120mm Fan, Taiwan Capacitor, DC to DC, ATX12V V2.4, 100,000 MTBF, 85% Efficiency 5YWT

Description

DeepCool PK-D series power supply offers reliable 80 PLUS Bronze efficiency to power computer system builds with stability and low noise performance.

BEAUTIFUL IN BRONZE The PK-D series is certified 80 PLUS Bronze, delivering up to 85% efficiency under typical load minimizing excess heat waste and lowering energy costs.

DC-DC CONVERSION A highly efficient DC-DC board designed for the +3.3V and +5V rails help achieve tighter voltage regulation and improve system compatibility for next-generation components.

TOUGH AND DURABLE Designed to operate effortlessly in high temperatures up to 40°C and high altitudes up to 5000m while providing continuous stable power output.

ERP LOT 6 COMPLIANT Designed to be highly power efficient when in power standby mode to meet international ErP Lot 6 standards to lower overall energy consumption.

Technical Spec
Type ATX12V V2.4
Product Dimensions 150×140×86mm (W x L x H)
80PLUS Certifications Bronze
Fan Size 120mm
Fan Bearing Hypro Bearing
Topology Active PFC+DC to DC
Capacitors Taiwan capacitor
Power Good Signal 100-150ms
Hold Up Time ≥16ms(80% Load)
Efficiency ≥85% Under Typical Load(50% Loading)
Protection SCP,OPP,OTP,OVP,OCP,UVP
Operation Temperature 0 – 40 °C
Regulatory CB/CE/FCC/CAN ICES-003(B)/NMB-003(B)/ TUV-RH/CCC/UKCA/EAC/RCM/BIS
Erp Regulation ErP 2013
MTBF 100,000 Hours
