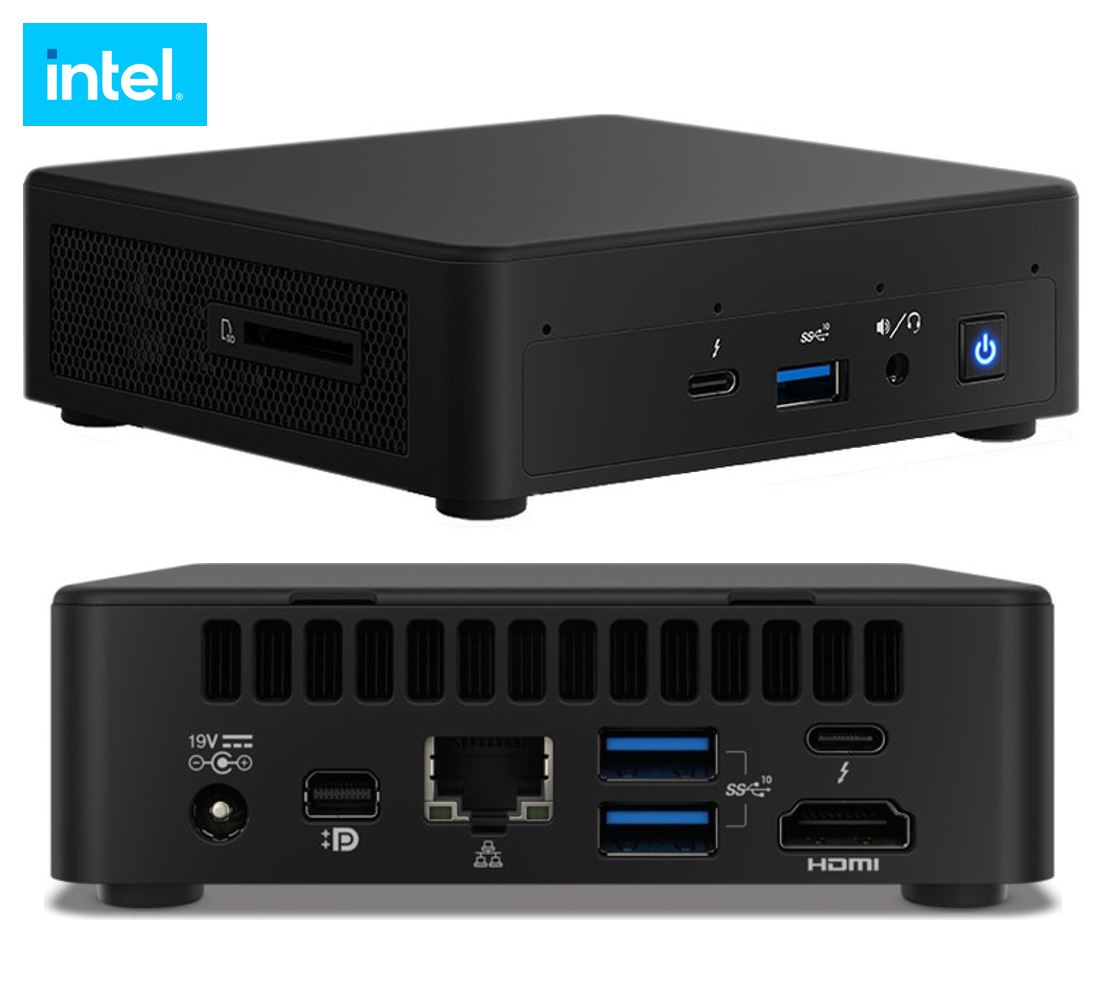

Intel NUC i7-1185G7 vPro 4.8 GHz 2xDDR4 SODIMM M.2 SSD 4xDisplays Iris Xe Graphics HDMI USB-C DP mDP 2xTB3 WiFi6 3xUSB GBE LAN BT no AC cord

Description

New Intel NUC BNUC11TNHV70000

Essentials
Product Collection Intel® NUC Kit with 11th Generation Intel® Core™ Processors
Code Name Products formerly Tiger Canyon
Status Launched
Launch Date Q1’21
Expected Discontinuance 1H’24
Supported Operating Systems Windows 10, 64-bit*, Windows 10 IoT Enterprise*, Red Hat Linux*, Ubuntu 20.04 LTS*
Board NuMBer NUC11TNBv7
Board Form Factor UCFF (4′ x 4′)
Socket Soldered-down BGA
Internal Drive Form Factor M.2 and 2.5′ Drive
# of Internal Drives Supported 3
TDP 28 W
DC Input Voltage Supported 12-24 VDC
Processor Included Intel® Core™ i7-1185G7 Processor (12M Cache, up to 4.80 GHz, with IPU)
Intel vPro® Platform Eligibility ‡ Yes
# of Cores 4
# of Threads 8
Max Turbo Frequency 4.80 GHz
Supplemental Information
EMBedded Options Available No
Memory & Storage
Max Memory Size (dependent on memory type) 64 GB
Memory Types DDR4-3200 1.2V SO-DIMMs
Max # of Memory Channels 2
Max # of DIMMs 2
ECC Memory Supported ‡ No
Processor Graphics
Integrated Graphics ‡ Yes
Graphics Output Dual HDMI 2.0b w/HDMI CEC, Dual DP 1.4a via Type C
# of Displays Supported ‡ 4
Expansion Options
PCI Express Revision Gen 4 (m.2 22×80 slot); Gen 3 (otherwise)
PCI Express Configurations ‡ PCIe x4 Gen 4: M.2 22×80 (key M) PCIe x1 Gen 3: M.2 22×42 (key B) PCIe x1: M.2 22×30 (key E)
M.2 Card Slot (wireless) 22×30 (E)
M.2 Card Slot (storage) 22×80 NVMe (M); 22×42 SATA (B)
I/O Specifications
# of USB Ports 4
USB Configuration Front: 2x USB 3.2 Rear: 2x USB 4 (type C), 1x USB 3.2, 1x USB 2.0 Internal: 1x USB 3.2 on m.2 22×42 (pins), 2x USB 2.0 (headers)
Total # of SATA Ports 1
Serial Port via Internal Header Yes
Integrated LAN Intel® Ethernet Controller i225-LM
Integrated Wireless‡ Intel® Wi-Fi 6 AX201
Integrated Bluetooth Yes
Additional Headers Front_panel (PWR, RST, 5V, 5Vsby, 3.3Vsby); Internal 2×2 power connector
# of Thunderboltâ„¢ Ports 1x Thunderboltâ„¢ 4, 1x Thunderboltâ„¢ 3
