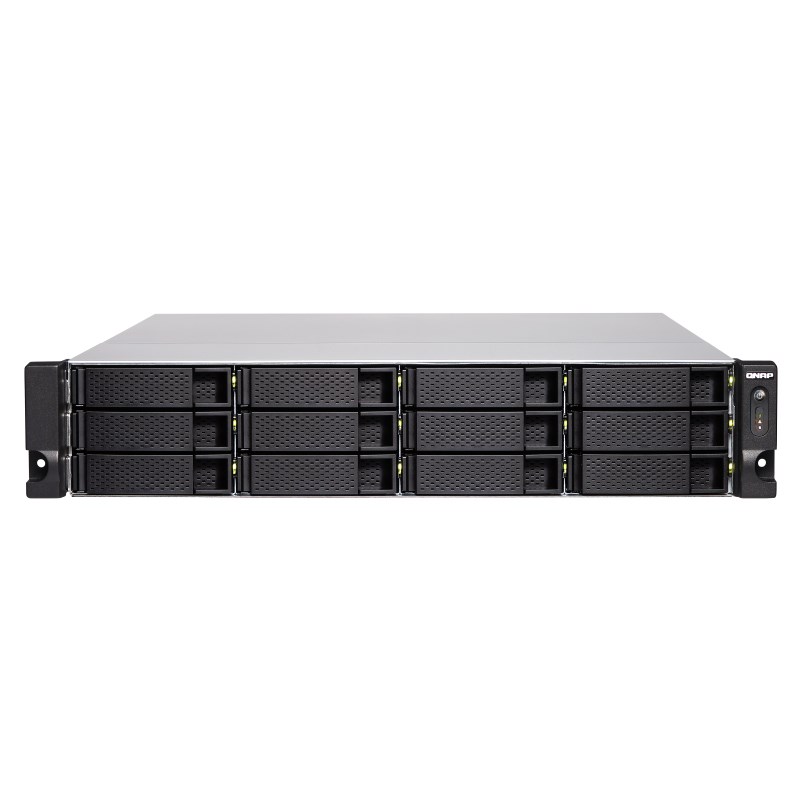

QNAP TS-1283XU-RP-E2124-8G Server-grade Intel Xeon E processor and ECC memory for high performance and reliability

Description

QNAP TS-1283XU-RP-E2124-8G Server-grade Intel Xeon E processor and ECC memory for high performance and reliability

CPU Intel Xeon E-2124 4-core 3.3 GHz processor (burst up to 4.3 GHz)
CPU Architecture 64-bit x86
Floating Point Unit
Encryption Engine (AES-NI)
System Memory 8 GB UDIMM DDR4 ECC (2 x 4GB)
Maximum Memory 128 GB (4 x 32 GB)
Memory Slot 4 x UDIMM DDR4
Flash Memory 5GB (Dual boot OS protection)
Drive Bay 12 x 3.5-inch SATA 6Gb/s, 3Gb/s
Drive Compatibility 3.5-inch bays:
3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives
Hot-swappable
SSD Cache Acceleration Support
GPU pass-through
Gigabit Ethernet Port (RJ45) 4
10 Gigabit Ethernet Port 2 x 10GbE SFP+ SmartNIC port
Wake on LAN (WOL)
Jumbo Frame
PCIe Slot 4
Slot 1: PCIe Gen 2 x4 (PCH)
Slot 2: PCIe Gen 3 x8 (CPU)
Slot 3: PCIe Gen 3 x4 (CPU)
Slot 4: PCIe Gen 3 x4 (CPU)
Slot 4 is preinstalled with a 10GbE network adapter
USB 3.2 Gen 2 (10Gbps) Port 2 x Type-C USB 3.2 Gen 2 10Gbps
4 x Type-A USB 3.2 Gen 2 10Gbps
Form Factor 2U Rackmount
LED Indicators HDD 1-12, Status, LAN, storage expansion port status
Buttons Power, Reset
Dimensions (HxWxD) 88.3 ? 482 ? 562 mm
Weight (Net) 11.75 kg
Operating Temperature 0 – 40 ?C (32?F – 104?F)
Storage Temperature -20 – 70?C (-4?F – 158?F)
Relative Humidity 5-95% RH non-condensing, wet bulb: 27C (80.6F)
Power Supply Unit 300W(x2), 100-240V
Power Consumption: HDD Sleep Mode 61.15 W
Power Consumption: Operating Mode, Typical 105.12 W
Tested with drives fully populated.
Fan System fan: 2 x 60mm, 12VDC
System Warning Buzzer
Max. Number of Concurrent Connections (CIFS) – with Max. Memory 10000
