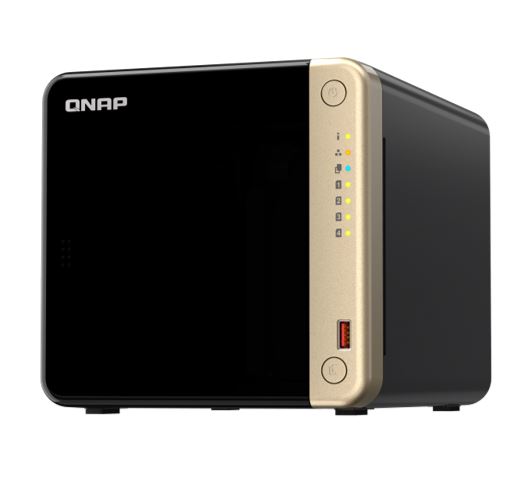

QNAP TS-464-4G 4 Bay NAS Intel Celeron N5105/N5095 4-core 4GB DDR4 2xSlot 2xM.2 2280 PCle 2×2.5GbE WOL 1xSlot PCle Gen3x2 2xUSB3.2 1XHDMI2.0 3YR WTY

Description

QNAP TS-464-4G 4 Bay NAS Intel Celeron N5105/N5095 4-core 4GB DDR4 2xSlot 2xM.2 2280 PCle 2×2.5GbE WOL 1xSlot PCle Gen3x2 2xUSB3.2 1XHDMI2.0 3YR WTY

Powered by an Intel Celeron N5105/N5095, quad-core processor (burst up to 2.9GHz), the TS-464 features two 2.5GbE RJ45 ports and Port Trunking for up to 5Gbps combined bandwidth. With M.2 PCIe Gen3 and PCIe Gen 3 slots, the TS-464 provides flexibility in extending NAS functionality, allowing you to install a QM2 card for M.2 SSD caching, or Edge TPU for AI image recognition and various 10GbE/5GbE network cards. The TS-464 comes with 4GB RAM for running light VMs and Containers, and supports multi-cloud backup, cloud storage gateways, 4K HDMI output and real-time transcoding, alongside expandable storage capacity and feature-rich apps to perform as a cost-efficient, reliable 2.5GbE NAS.

CPU Intel Celeron N5105/N5095 4-core/4-thread processor, burst up to 2.9 GHz
CPU Architecture 64-bit x86
Graphic Processors Intel UHD Graphics
Floating Point Unit
Encryption Engine (AES-NI)
Hardware-accelerated Transcoding
System Memory 4 GB SO-DIMM DDR4 (1 x 4 GB)
Maximum Memory 16 GB (2 x 8GB)
Memory Slot 2 x SO-DIMM DDR4
For dual-DIMM configuration, you must use a pair of identical DDR4 modules.
Flash Memory 4GB (Dual boot OS protection)
Drive Bay 4 x 3.5-inch SATA 6Gb/s
Drive Compatibility 3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives
Hot-swappable
M.2 Slot 2 x M.2 2280 PCIe Gen 3 x1
SSD Cache Acceleration Support
2.5 Gigabit Ethernet Port (2.5G/1G/100M) 2 (2.5G/1G/100M/10M)
Wake on LAN (WOL)
PCIe Slot 1
Slot 1: PCIe Gen 3 x2
USB 2.0 port 2
USB 3.2 Gen 2 (10Gbps) Port 2 x Type-A
IR Sensor (Optional QNAP RM-IR004 remote control)
HDMI Output 1, HDMI 2.0
Operating temperature 0 – 40 ?C (32?F – 104?F)
Power Supply Unit 90W adapter, 100-240V
Power Consumption: HDD Sleep Mode 11.3 W
Warranty 3 yr
