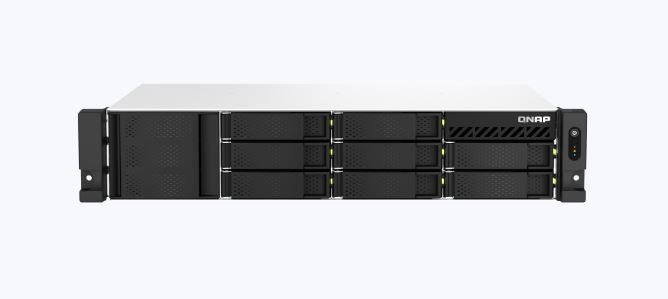

QNAP TS-873AeU-RP-4G 8 Bay 2U AMD Ryzen Embedded V1500B 4GB DDR4 Hot-swappable 2 x M2 2280 2×2.5GbE WOL 1xPCle Gen3 x8 4xUSB3.2 2U redundant power

Description

The compact 2U rackmount TS-873AeU-RP combines an AMD Ryzen V1000 series V1500B quad-core/eight-thread 2.2 GHz processor and dual-2.5GbE connectivity in one chassis. Compared to its previous generation, the TS-873AeU-RP is enhanced with two M.2 PCIe Gen3 x 1 ports for NVMe SSD cache acceleration or Edge TPU empowered AI image recognition. Cutting-edge hardware integrated with comprehensive software solutions makes the TS-873AeU-RP the preeminent choice to tackle resource-demanding applications and tasks, such as virtual machines or intensive multi-user access. The space-efficient short depth design of only 11.7 inches (297.4 mm) makes it easy to install in small media cabinets or places with a lot of cabling. The TS-873AeU-RP also features two redundant power supplies to ensure maximum system uptime.

CPU AMD Ryzen Embedded V1500B 4-core/8-thread 2.2 GHz processor
CPU Architecture 64-bit x86
Floating Point Unit
Encryption Engine (AES-NI)
Hardware-accelerated Transcoding Optional via a PCIe graphics card
System Memory 4 GB SODIMM DDR4 (1 x 4 GB)
Maximum Memory 64 GB (2 x 32 GB)
Memory Slot 2 x SODIMM DDR4
Flash Memory 5GB (Dual boot OS protection)
Drive Bay 8 x 3.5-inch SATA 6Gb/s, 3Gb/s
Hot-swappable
M.2 Slot 2 x M2 2280 (PCIe Gen3 x 1)
SSD Cache Acceleration Support
GPU pass-through
2.5 Gigabit Ethernet Port (2.5G/1G/100M) 2 (also support 10M)
5 Gigabit Ethernet Port (5G/2.5G/1G/100M) Optional via a network adapter
10 Gigabit Ethernet Port Optional via a network adapter
Wake on LAN (WOL)
PCIe Slot 1 x PCIe Gen3 x8
USB 3.2 Gen 2 (10Gbps) Port 4 (2 x Type A, 2 x Type C)
HDMI Output Optional via a PCIe graphics card
Form Factor 2U Rackmount
LED Indicators HDD 1-8, Status, LAN, USB, Power
Operating temperature 0 – 40 ?C (32?F – 104?F)
Power Supply Unit 300W PSU(x2), 100 – 240V
Fan 3 x 60mm, 12VDC
