QNAP TVS-675-8G 6 Bay NAS ZhaoXin KX-U6580 8-core 2.5GHz 8G DDR4 Hot-swappable 2xM.2 2280 PCIe Gen 3 x1 2 x2.5GbE WOL 2xPCle Gen 2xUSB3.2 3yr wty

Description

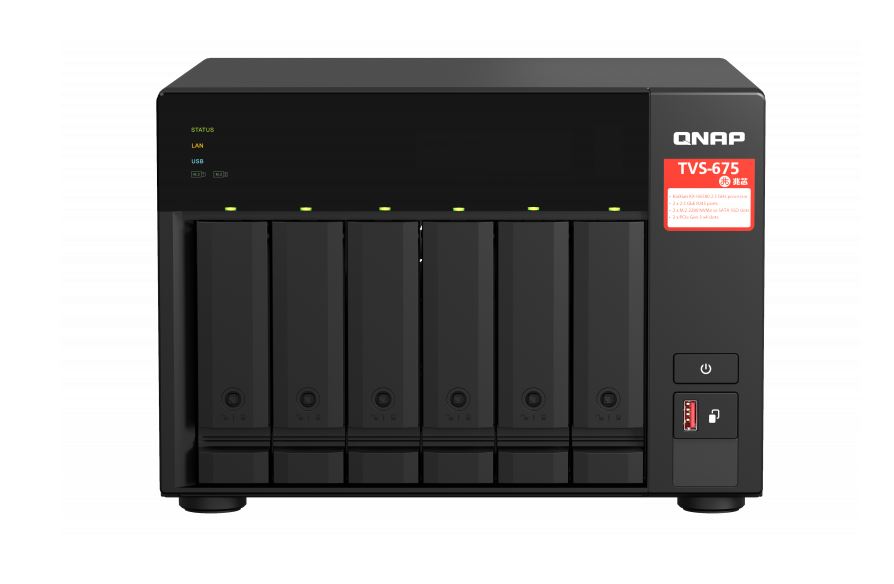

QNAP TVS-675-8G

Powered by the x86 architecture Zhaoxin KaiXian KX-U6580 8-core processor, the TVS-675 provides businesses with a modern 2.5GbE NAS solution to tackle everyday tasks like file backup/restore, and to boost team collaboration with higher productivity. Besides hardware advantages with built-in M.2 SSD slots for cache acceleration and PCIe expansion, the TVS-675 supports abundant business and media applications (including snapshot protection, virtual machines, cloud storage gateways, 4K HDMI display, and real-time transcoding) alongside expandable storage capacity and install-on-demand apps, making it a cost-effective and reliable data storage and media NAS.

CPU ZhaoXin KX-U6580 8-core 2.5GHz processor
CPU Architecture 64-bit x86
Graphic Processors ZhaoXin C-960 Graphics
Floating Point Unit Yes
Encryption Engine Yes (AES-NI)
Hardware-accelerated
Transcoding Yes
System Memory 8 GB SODIMM DDR4 (1 x 8 GB)
Maximum Memory 64GB (2 x 32 GB)
Memory Slot 2 x SO-DIMM DDR4
Flash Memory 5GB (Dual boot OS protection)
Drive Bay 6 x 3.5-inch SATA 6Gb/s, 3Gb/s
Drive Compatibility 3.5-inch bays:
3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives
Hot-swappable Yes
M.2 Slot 2 x M.2 2280 PCIe Gen 3 x1 or SATA 6Gb/s slots
SSD Cache Acceleration
2.5 Gigabit Ethernet Port
(2.5G/1G/100M) 2
5 Gigabit Ethernet Port
(5G/2.5G/1G/100M)
Optional via an adapter
10 Gigabit Ethernet Port Optional via an adapter
Wake on LAN (WOL) Yes
Jumbo Frame Yes
PCIe Slot 2
Slot 1: PCIe Gen 3 x4
Slot 2: PCIe Gen 3 x4
USB 3.2 Gen 1 port 2
USB 3.2 Gen 2 (10Gbps) Port 2 x Type-A
HDMI Output 1, HDMI 2.0 (up to 3840 x 2160 @ 60Hz)
Form Factor Tower
LED Indicators HDD 1-6, Status, LAN, USB, M.2 SSD 1-2
Buttons Power, Reset, USB Copy
Operating temperature 0 – 40 ?C (32?F – 104?F)

Power Supply Unit 250W, 100-240V AC, 50/60Hz, 3.5A
