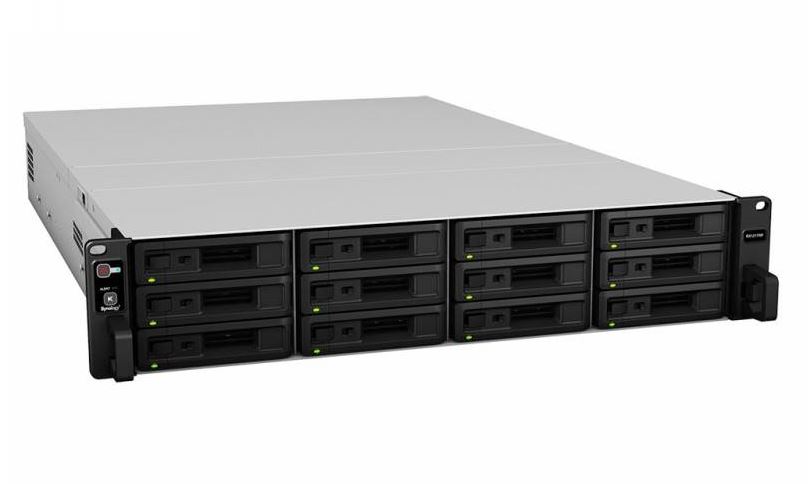

Synology Expansion Unit RX1217 12-Bay 3.5′ Diskless NAS (2U Rack) (SMB/ENT) for Scalable NAS Models RS3617

Description

Synology Expansion Unit RX1217 delivers an effortless solution for data volume expansion and data backup for Synology 2U RackStation NAS. With additional 12 drive bays, RX121seamlessly expands the storage capacity of the connected Synology NAS on-the-fly. Synology RX1217 is backed with Synology’s 5-year limited warranty. Synology Live Chat available

Plug-n-use design for seamless storage space upgrade
Online volume expansion on the fly
Managed from Synology DiskStation Manager (DSM)
Model backed with Synology Replacement Service (SRS) – Conditions apply. Refer to the Synology Website
Applied Models RS4017xs+ RS3617xs+ RS3614xs+ RS3413xs+ RS3617xs RS3617RPxs RS3614(RP)xs RS3412(RP)xs RS3411(RP)xs RS2416(RP)+ RS2414(RP)+ RS2212(RP)+ RS2211(RP)+
Additional Service and Warranty Packages available
Storage Drive Bays 12
Compatible Drive Type* (See all supported drives) 3.5′ SATA HDD 2.5′ SATA HDD 2.5′ SATA SSD
Maximum Internal Raw Capacity 192 TB (16 TB drive x 12) (Capacity may vary by RAID types)
Hot Swappable Drive
RAID Management through Synology DSM
External Ports Expansion Port 1
Size (Height x Width x Depth) 88 mm x 430.5 mm x 664 mm
Weight 12.7 kg
Rack Installation Support* 4-post 19′ rack (Synology Rail Kit – RKS1317) Notes The rail kit is sold separately
Power Power Recovery Synchronized with the Synology RackStation
Power Supply Unit / Adapter 500 W
AC Input Power Voltage 100 V to 240 V AC
Power Frequency 50/60 Hz, Single Phase
Redundant Power Supply (for RP model) Notes Power consumption is measured when it is fully loaded with Western Digital 1TB WD10EFRX hard drive(s).
Operating Temperature 5?C to 35?C (40?F to 95?F)
System Fan 80 mm x 80 mm x 3 pcs
Easy Replacement System Fan
Noise Level*54.2 dB(A) (for RP model)
Certification FCCCEBSMIEACRCMKC
Warranty 5 Years
