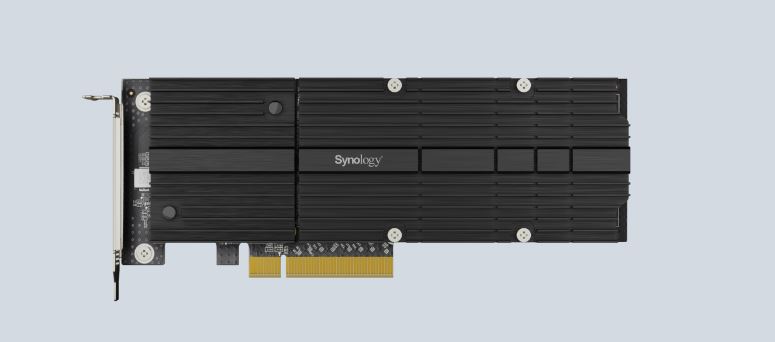

Synology M2D20 Accelerate random I/O performance with the dual M.2 2280/22110 NVMe SSD slots

Description

Synology M2D20 is a M.2 NVMe SSD adapter card designed to supercharge your NAS I/O performance. The multi-queue capability of NVMe SSD greatly benefits latency-sensitive applications such as photo indexing, file search, and virtualization deployments.

Host Bus Interface PCIe 3.0 x8
Bracket Height Low Profile and Full Height
Size (Height x Width x Depth) 71.75 mm x 181.9 mm x 15.8 mm
Operating Temperature 0?C to 40?C (32?F to 104?F)
Storage Temperature -20?C to 60?C (-5?F to 140?F)
Relative Humidity 5% to 95% RH
Warranty 5 Years
Notes The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)
Storage
Storage Interface PCIe NVMe
Supported Form Factor 22110 / 2280
Connector Type and Quantity M-key, 2 Slots
Compatibility
Applied Models
NVMe SSD
SA series:SA3600, SA3400
21 series:RS4021xs+, RS3621xs+, RS3621RPxs, RS2821RP+, RS2421RP+, RS2421+, RS1221RP+, RS1221+
20 series:RS820RP+, RS820+
19 series:DS2419+, DS2419+II, DS1819+
18 series:RS2818RP+, RS2418RP+, RS2418+, DS3018xs, DS1618+
Notes DSM version requirement: 6.2.3-25426 or later version
